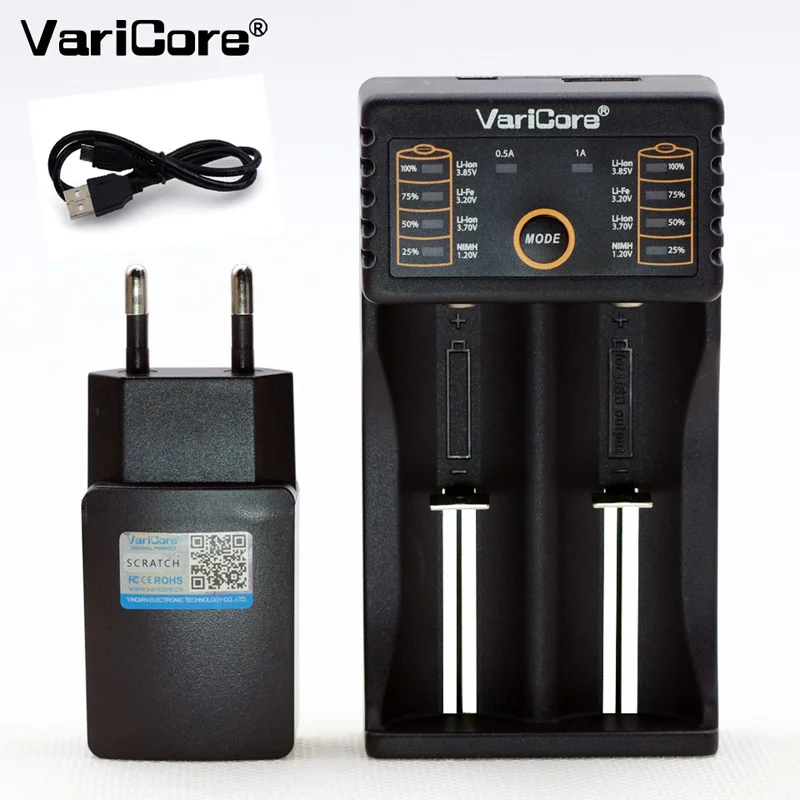

2a V20i Electronics Smart Battery Plug New Varicore V/3.7 V/4.25v 5v 1.2 18650/26650/18350/16340/18500/aa/aaa Best 2018 V/3 Landin Nita Rating: 4.5 out of 5
Shipping list:Does not contain battery
1. VariCore V20I Charger x 1 PCS+ V20I USB Cable 1PCS + 5V 2A plug 1PCS+V20I instruction 1PCS + V20IColor boxed 1PCS
2. VariCore V20I Charger x 1 PCS+ V20I USB Cable 1PCS + V20I instruction 1PCS+ V20I Color boxed 1PCS
3. 5V 2A plug1PCS
We are factory direct sales, if you like this product, have intention to agent, or need more quantity, you can contact us.
1. Warming:
lThis charge is only for charging cylindrical li-ion (3.7V, 3.8V), Ni-MH/Ni-Cd, LiFePO4(Li-ion) batteries.
lPlease read this instruction before use; Pay attention to the recommended charging current, never select improper charging current
lWhen charge with 5V USB AC adapter, 2A-current AC adapter is recommended
lThe charger ma get hot during working a long time, handle with care!
lPlease cut off the electricity and remove the battery from the charger when charging complete.
lIndoor condition only!!
lThe displaying data of the charger is only for reference; please refer to professional test instruments if you need accurate data
2. Feature and Specification:
lMicro USB DC 5V input, two independent slots and charging channels with built-in micro-computer management system to ensure the high efficiency
lTwo charging current options (0.5A/1.0A)
lFour LED indicators shows the charging status (25%, 50%, 75%, 100%) and also shows the battery type when insert into battery (1.2V Ni-MH , 3.2V Li-Fe, 3.7V Li-ion, 3.85V li-ion)
lIdentify Li-ion and Ni-MH automatically; But, you need to adjust the charge mode for LiFePO4 and 3.85V li-ion battery
lIt can active 0V rechargeable battery but the charger don’t charge 1.65V ~ 1.85V battery types.
lBuit with Over-charging protection, over-discharging protection and polar reverse protection. Also, it can identify broken battery.
lCharing mode: instant current and voltage.
lDC input charging: working power source at 5V-2A (Micro plug)
lStandard automatical 5V/1000mAh USB output port
3. Select Button, LED and function.
MODE Button:
lPress the button to select the battery type when insert into a battery. It begin to charge the battery after fixing the battery type (please noted that it identify Li-ion and Ni-MH automatically, don’t need to select manually)
lPress the button and hold it for 2 seconds whenever after connection to power, it can switch the charging current between 0.5A and 1.0A;
LED Indicator
lConnect the charger to power, all LED indicators will be on, when no battery insert after 5 seconds, LED indicators will be off except the 0.5A current indictor
lWhen battery is inserted into the charger, 4 LED indictors will be on and 3.7V LED indictors flicker, then, please click the MODE button to fix the correct battery type. It will begin to charge the battery 5 seconds later, and the LED indictors will show the charging status.
lPress the MODE button to show the battery type( 5 seconds ) during charging and return to show the charging status
lIt can shows the battery’s remaining power when put battery into the charger ( no connection with charging power)
lUSB output indictor: When USB output is detected, the battery volume indictors will be on for 10 seconds and then off, click the button to show the battery’s volume rate.
4. Specification:
lInput: Micro USB DC 5V/2A
lOutput: 1.4V , 4.2V±0.05V , 3.65±0.05V , 4.35±0.05V
lOutput current: 500/1000mAh
lConstant voltage charging, cutoff current: < 100mAh
lStandby current:<15mAh
5. USB Output Function
lUSB output no-load voltage: 4.90V-5.30V
lOutput current: 1000mAh (1A)
lNo-Load current: < 1mAh
lThe output voltage is 4.75V-5.25V when current is 1000mAh
lOutput protection voltage: 3.0±0.1V
6. Compatibility
lLi-ion/IMR: 18650, 18490, 18350, 17670, 17500, 16340(RCR123), 14500, 10440
7. Size
l112mm× 60mm×30mm/ 86grams + 15gram USB cable
