Charger 16340 New Lithium V Aa/aaa 26650 2017 Top 3.7 Hot 25500 Sale Lii-18650 Jakobe Nick Rating: 3.8 out of 5
liitokala USB cable 1 pcs.
liitokala packing bag1 pcs.
Liitokalalii-402 manual 1 pcs.Lii-charger guide 402
W A rning
1. This battery charger may charge Only Cylindrical lithium ion battery (3.7 V, 3.8 V), nickel Hydrogen / nickel cadmium, lithium batteries phosphate;
2. Before use, please, Carefully read the instructions, pay attention to the recommended rechargeable battery charging current, not Exceed recommended charging current;
3. A rge with CH A 5 USB ADA pter (ADA pter current recommended 2A);
4. The battery discharge and charge device can be fever, Be careful not to burn;
5. When you stop using it, turn off the Power and remove the battery.
6. Can Only be used in a normal room.
7. TH is the test data code IS for reference only, the actual situation, please contact your professional equipment.

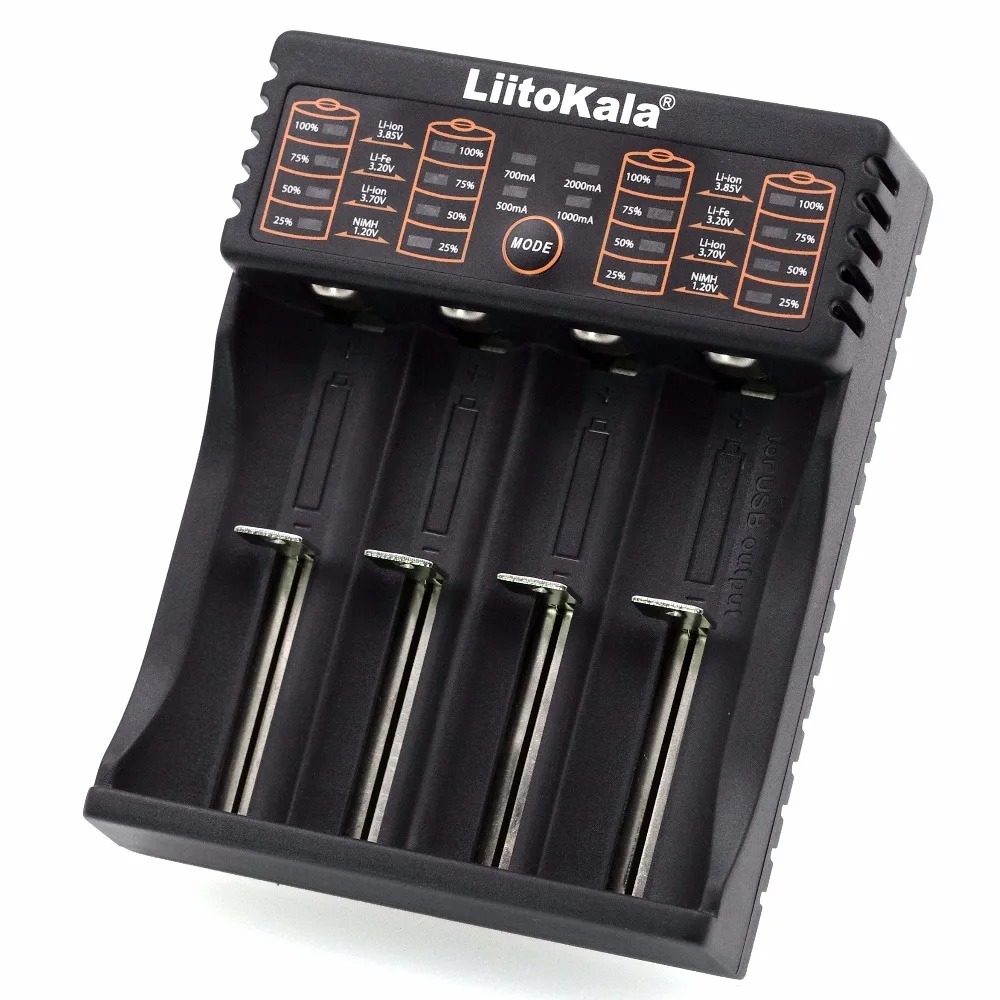

Appearance:2, the charger requirements and functions:
1. micro USB DC 5V input, two separate charging Micro Computer management and system
2. To 4 Kinds of selection of charging current (500mA / 700mA / 1000mA / 2000mA ) 2000mAappointed fourth slot.
3. The charge status display LED 25% 50% 75% 100% and battery type nimh 1.2 In li-fe 3.2 Lithium-ion 3.7 V Li-Ion 3.85 V.
4. can automatically identify lithium (li-ion) batteries and nickel -metallgidridnye (ni-mh) batteries, manually select iron phosphate (Liepo4) battery and Li-Ion 3.85 battery
5. 0 V oltage acti V Ation functions 1.65-1.85 B can not be charged (but Will be acti V ated trickle charge current type).
6. is a charge, short circuit, the intelligent identification bad battery and the battery is inverted detection protection.
7. charging mode, constant current constant pressure
8. With DC input, battery power source device for 5V-2A (Micro connector)
9. Standard 5 V / 1000mA usb automatic identification output function,
: 1. Press key: hold selector Key for 2 seconds to switch On DS 500mA 700mA 1000mA 2000mA charge current AT Power On,
When charging the battery, press Select Key to Change the battery type. when the battery type is Selected (e.g., 3.20 in 3.85 in) for 5 seconds, type charging state.
2. LED: Charger c On nected to 5V power supply, battery charger all the time of all LED Bright, if the battery is not put into the battery slot, 500mA (LED) indicator is on, other lights Go.
When the battery is found, the four LED lights all bright, 3.7LED light Will flash, then press button to select the type of battery you need to charge, the if not the Selected, 5 seconds by default Ident if ication battery, charge in Indian AT or light flashes AT corresponding charge R AT IO. Click to check the type of charge (NO Power display) 5 seconds after the return to the state of charge. When not energized, and insert the battery to view in Power Ratio (5 seconds after extinguishing View need to click again)
Exit USB indicati ON: when output USB is detected in the power On display for 10 seconds On DS and press to check the power.
4. LED display in the photoFourth, electric Technical data:1, power input: Micro USB DC 5V / 2A
2, the output V oltage: 1.42 V
4.2 ± 0.05 V,
3.65 ± 0.05 V
4.35 ± 0.05 V
3, the output current: 2000mA * 1 1000mA * 2 700mA * 3 500mA * 4
4 constant voltage CH A rging, the cutoff current: <100 m;
5, the external power source a L ST A ndby current: <15.0 m;
five, USB output function:
1, USB output port no load V oltage: 4.90V-5.30 V; Set the fourth slot for USB output
2, output current: 1000 m;
3, no-Lo AD Current: <1 M;
4, lo AD 1000 M current output port V OLT A GE: 4.75V-5.25 V;
5, to stop protecting the output oltage: 3.0 V ± 0.1 V; 6 compatible battery: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
Seven charger Size: 112mm × 90mm × 30mm (length / width / height)
Weight: 173g (Micro Line)
