1.2v 18350 20700 Liitokala Lii-100 Lii-402 Aa 3.7v /aaa E-cigarette Price Electronics Nimh Charger 3.2v Keshawn Walker Rating: 3.9 out of 5
Just as you will get a fortune, this item is able to give a lorry that should be extremely intriguing for you. The goods brochure you obtain is absolutely supply a recommendation for those of you who want to discover the product you want.

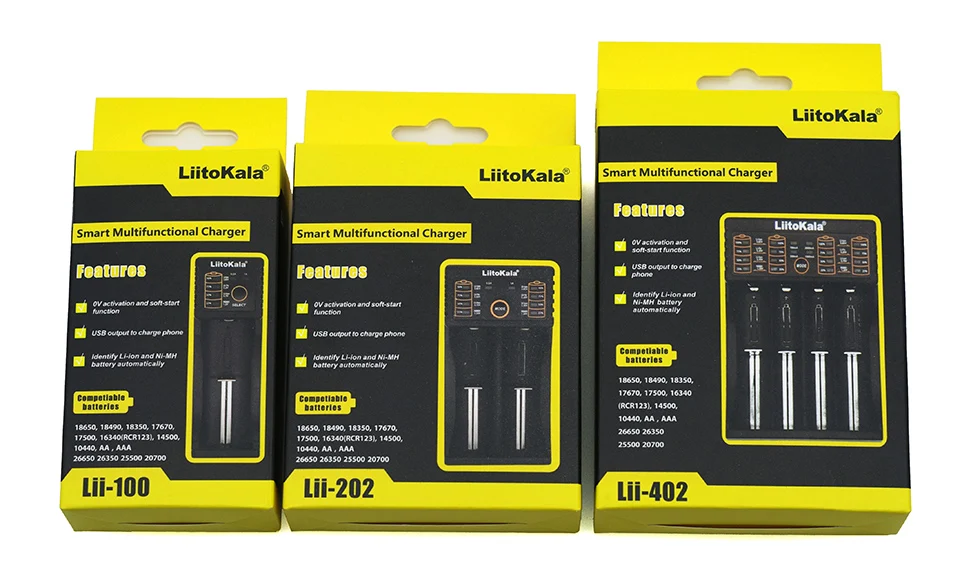

1.Lii402 charger Shipping list：402 Charger + 2A USB cable +manual
2.Lii202 charger Shipping list：202 Charger + 2A USB cable + manual
3.Lii100 charger Shipping list：100 Charger + 2A USB cable + manual
Lii-100 Charger Product Description:
First, the charger requirements and functions:
1. Using Micro USB DC 5V input, single-slot charging and independent microcomputer management system
2. Available two kinds of charging current selection (500mA / 1000mA)
3. LED displays charge status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.0V Li-ion 3.7V Li-ion 3.85V.
4.It can automatically identify the lithium battery (Li-ion) batteries and nickel-metal hydride (Ni-MH) battery, manual selection of iron phosphate treatment (Liepo4) batteries and Li-ion 3.85V battery
5. There 0V voltage activation, 1.6-2.2V not charge (but donations will be activated currents flow pattern charge).
6. There overcharge and over discharge, short circuit, intelligent recognition bad battery detection and reverse battery protection.
(Note: short circuit, bad battery, reverse battery, charger does not work, LED is not lit)
7. Charging mode, constant current constant voltage
8. Using a DC input power for the charger to work 5V-1A (Micro plug)
9. a paragraph: with standard 5V / 1000 mA USB automatic identification output,
b paragraph: No USB output function
Second, the description of the keys, LED and function
1. Press: under power, any time hold down the Select button for 2 seconds each converter 500mA 1000mA charging current;
Powered battery charging, tap Select button to change the type of rechargeable battery, the battery needs to be charged when the selected type (Example 3V 3.85V) 5 seconds to enter the state of charge.
2. LED: charger connected to 5V power supply, charger all LED full brightness instantly, without a battery into the charging slot, 500mA (LED) indicator light, other lights go out.
Upon detection of a battery, four LED lights flashing, then you can tap the button to select the desired type of rechargeable batteries, if you do not choose, five seconds after entering the default recognition of battery charging, charging indicator in accordance with the corresponding power ratio flashes. Tap the button to query the charging pattern (no charge indicator) five seconds after the return to the state of charge. When not energized, insert the battery charge can be viewed ratio (5 seconds and then turns off, you need to view the press again)
USB Output indication: When detected USB output, power indicator lights go out after 10 seconds, the button can view power.
Third, the electrical technical parameters:
1, input power: Micro USB DC 5V / 1A
2, the output voltage: 4.2V ± 1% / 5V
3, the output current: 500mA / 1000mA
4, constant voltage charging, off current: <100m A;
5, the external power supply Standby current: <15.0mA;
Four, USB output function:
1, USB port output load voltage: 4.90-5.30V;
2, the output current: 1000mA
3, no-load current: <1mA;
4, 1000m A load current, the port output voltage: 4.75-5.25V;
5, stop the output protection voltage: 3.0 ± 0.1V;
V. compatible battery:
Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440
Charger Dimensions: 113mm × 38mm × 32mm (length / width / height)
Weight: ** g (without battery, power cord)
Lii-402 charger manual
First, warm tips
1. This charger can only charge cylindrical lithium ion battery (3.7V, 3.8V), nickel hydrogen / nickel cadmium, lithium iron phosphate battery;2. Before use, please carefully refer to the instructions, pay attention to the recommended rechargeable battery charging current, do not exceed the recommended current charge;3. Charge with a 5V USB adapter (adapter current recommended 2A);4. Charger charge and discharge may be fever, be careful not to burn;5. When you stop using it, unplug the power and unplug the battery.6. Can only be used in normal room.7. This product test data is for reference only, the actual situation, please refer to professional equipment. Appearance:202 Second, the charger requirements and functions: 1. Micro USB DC 5V input, two separate charging and microcomputer management system 2. Available for 4 kinds of charging current selection (500mA / 700mA / 1000mA / 2000mA) 2000mA designated fourth slot.3. LED display Charge status 25% 50% 75% 100% and battery type NiMH 1.2V Li-Fe 3.2V Li-ion 3.7V Li-ion 3.85V. 4. Can automatically identify lithium (Li-ion) batteries and nickel-metal hydride (Ni-MH) batteries, manually select the iron phosphate (Liepo4) battery and Li-ion 3.85V battery 5. 0V voltage activation function, 1.65-1.85V can not be charged (but there will be activated current trickle type charge). 6. Have over-charge, short circuit, intelligent identification of bad batteries and reverse battery detection protection. 7. Charging mode, constant current constant pressure 8. Using DC input, the charger power supply for the 5V-2A (Micro plug) 9. With standard 5V / 1000mA USB automatic identification output function,Third, the key, LED and function description1. Press the key: hold the selector key for 2 seconds to switch 500mA 700mA 1000mA 2000mA charge current at power on,When charging the battery, press the select key to change the type of rechargeable battery. When the rechargeable battery type is selected (for example, 3.20V 3.85V) for 5 seconds, enter the charging state.2. LED: charger connected to the 5V power supply, the charger all the LED moment all bright, if the battery is not put into the charging slot, 500mA (LED) indicator light is on, the other lights go out. When the battery is detected, the four LED lights are all bright, 3.7LED light will flash, then press the button to select the type of battery you need to charge, if not selected, 5 seconds into the default identification of the battery charge, charge The indicator light flashes at the corresponding charge ratio. Press the button to check the charge type (no power indication) 5 seconds after the return to the state of charge. When not energized, insert the battery to view the power ratio (5 seconds after extinguishing, need to view again press)USB output indication: When the USB output is detected, the power indicator turns on for 10 seconds and presses to check the power. 4. LED display reference pictureFourth, the electrical technical parameters: 1, input power: Micro USB DC 5V / 2A2, the output voltage: 1.42V4.2V ± 0.05V,3.65 ± 0.05V4.35 ± 0.05V3, the output current: 2000mA * 1 1000mA * 2 700mA * 3 500mA * 44, constant voltage charging, cut-off current: <100m A;5, external power supply standby current: <15.0m A;Five, USB output function:1, USB port output no-load voltage: 4.90-5.30V; specify the fourth slot for the USB output2, the output current: 1000 m A;3, no-load current: <1m A;4, load 1000m A current, the port output voltage: 4.75-5.25V;5, stop output protection voltage: 3.0 ± 0.1V;6, compatible batteries: Li-ion / IMR: 18650, 18490, 18350, 17670, 17500, 16340 (RCR123), 14500, 10440Seven, charger size: 112mm × 90mm × 30mm (length / width / height) Weight: g + g (micro line)Lii-202 This charger is designed for portable, flexible and multi types of battery. It can detect the battery type and charge the battery automatically under your selected charging current. Built-in LED indicators to display the charging status and 5V/100mAh USB output function
