Cell Panel 2019 810mm Lamination Happy Best Electronic Solar Film Cells Eva Encapsulation

Universal Digital Promotion Sale Goods Collections with Express Shipping Delivery from Trusted Products Choice Super Consumer Comment provide best electronic collections,high rating electronics,electronic big deals Cell Panel 2019 810mm Lamination Happy Best Electronic Solar Film Cells Eva Encapsulation.
Cell Panel 2019 810mm Lamination Happy Best Electronic Solar Film Cells Eva Encapsulation Rating: 4.2 out of 5
Get Discount Now! Only US $9.31/piece at this time. Hurry buy Now before back to normal price! Normal price US $9.90 or you can Check price now. Dont waste your time. Buy Now only at DIY-Solar Store Trusted Seller Store!

NOTE:

! if you hope that EVA film adopts roll packaging not fold,please choose commercial express DHL, UPS,Fedex, EMS, TNT shippping !------!! becausethe length limit of Post transport cant be more than 60cm !!AliExpress standard shipping also belongs to Post transport !! 810mm x 1m Photovoltaic solar cells EVA film sheet for

Home Solar Cells Panel Encapsulation

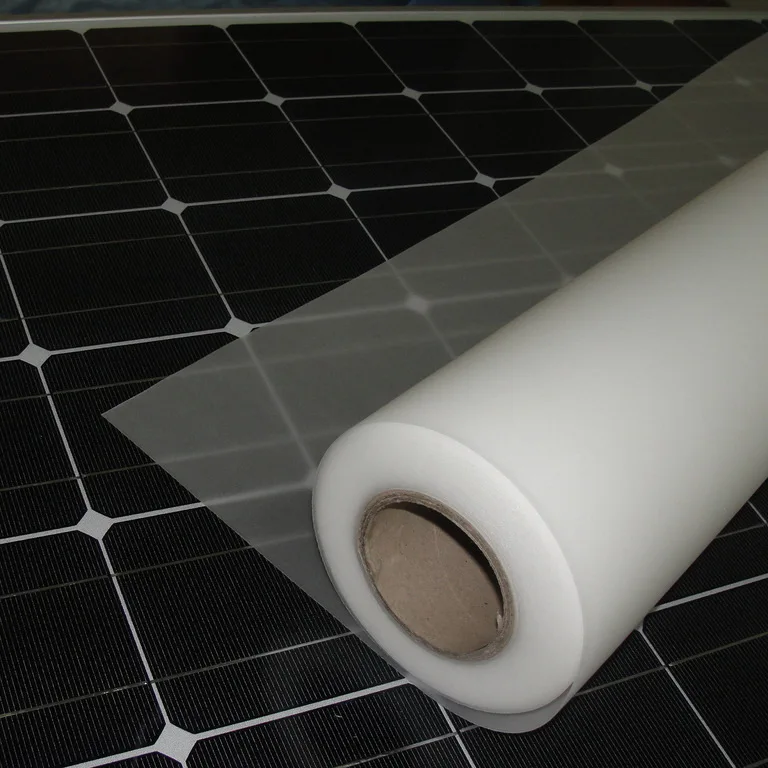

Product IntroduceEVA film for solar cells, crystalline silicon cells, thin film photovoltaic cells and other components within the packaging material. The content of 30% -33% of the EVA resin as main raw material, made through a special process, with strong bonding, high light transmission, anti-aging characteristics.​Feature1)Excellent durability, such as weather resistance, high temperature and high humidity resistance, UV light resistance.2)Excellent light and transmittance and transparency.3)Inactivation and harmless in solar cell during processing.4)Have a high cross linking rate after lamination.5)Good encapsulating property.Technical Description
Item Unit Test method Fast Cure
Adhesive strenhth glass N/cm ASTM D903 ≥70
Adhesive strenhth BBF N/cm ASTM D904 ≥70
Shrinkage Ratio on the glass Machine direction % ASTM D1204-05 ≤3.0
Crossing direction % ≤2.0
Shrinkage ratio on the backsheet Machine direction % ≤3.0
Crossing direction % ≤2.0
light Transmittance % ASTM D1003 ≥91
Gel Content(150,30min) % ASTM D2765 75~95
VA Content % TGA 28~33
MFR g/10min ASTM D1238 30.5
Melting Point ASTM D3417 60
Water-absorbing Ratio % ASTM D570 ﹤0.1
Hardness shore A ASTM D2240 70
Refraction Rate / ASTM D542 1.492
Specific Heat J/℃,g ASTM C351 2.32
Density g/cm3 ASTM D1506 0.95
UV Cut off Wavelength Nm / 360
Volume Resistivity Ωcm ASTM D257 3.0 x 10​13
Breakdown Voltage kv/mm ASTM D149 22.2
Tensile strength Mpa ASTM D882 16.8
Elongation Ratio % 958.98
Tensile modulus Mpa 10.49
UV-aging(UV,1000h) Yellowish index YI ASTM G154 ≤3.0
Transmittance change % ≤1.0
Damp Heat(85%RH,85oC 1000h) Yellowish index YI IEC68 ≤3.0
Transmittance change % ≤1.0

Laminating Process

Laminating: laminate the glass, EVA film, connected silicon cells, EVA film, TPT backsheet foil in sequence.Vacuum pumping: Place above laminated pieces into the lower room of the double-vacuum press. Then the upper room and the lower room are vacuumed synchronously about 6min.Heating: the upper and the lower room are kept vacuum, meanwhile heat the laminated pieces.Press: Laminated pieces are heated under 135°C-140°C conditions, the upper room cancel vacuum and get back to atmospheric pressure. At that time the lower room is still kept vacuum, that is to say, the upper room press on the laminated pieces of the lower room.Curing: Isothermal curing under the curing temperature.Cooling and framing: After isothermal curing, cancel the vacuum of the lower room, open the top of the press, and take out the laminated modules. Then cut off the extra EVA of composite lamination edge. Moreover seal frame and equip the termainal box, assemble PV modules at last. Caution during laminating1, to ensure a constant temperature and humidity in the storage room and use of EVA film,2, To avoid static electricity generated in the cutting process, the proposed installation in addition to static devices. Staff are required to wear dust-proof clothing and a dust cap, to avoid head EVA film on the hair off to using skim gloves.3, cut into a sheet of EVA film to be sealed to prevent dust, gloves and other fibers and other foreign matter contamination.4, In addition to the workshop should be equipped with mosquito device to prevent mosquito pollution diaphragm.5, In order to facilitate the laying of pumping air bubbles and stick with the cells, place the frosted side facing cells.6, It is recommended near the paper tube around each roll and do not use the outermost circle.Product Storage:Products must be stored indoors, the temperature control in the range of 0 °C -30 °C, relative humidity below 60%, away from heat and dust, avoid direct sunlight.Lossless out of the box should be checked before packing.Out of the box, the product should be used as soon as possible, is not used up part of the package must be resealed.Stored no longer than six months from the date of production is best used within three monthsReal Application


Return Policy

If the product you receive is not as described or low quality, the seller promises that you may return it before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe) and receive a full refund. The return shipping fee will be paid by you. Or, you can choose to keep the product and agree the refund amount directly with the seller.
N.B.: If the seller provides the "Longer Protection" service on this product, you may ask for refund up to 15 days after order completion.

Seller Service

On-time Delivery: If you do not receive your purchase within 60 days, you can ask for a full refund before order completion (when you click "Confirm Order Received" or exceed confirmation timeframe).
