Silicon 4.2w Electronics Diy Solar 25pcs Popular Cell 18% Xinpuguang Module Product Pv 0.5v 156*150mm Xiomara Joko Rating: 4.0 out of 5
Quality items ensure your life a lot more comfortable when using it. If you are interested to buy it, you could directly get in touch with the sales to obtain more information regarding this high quality item.

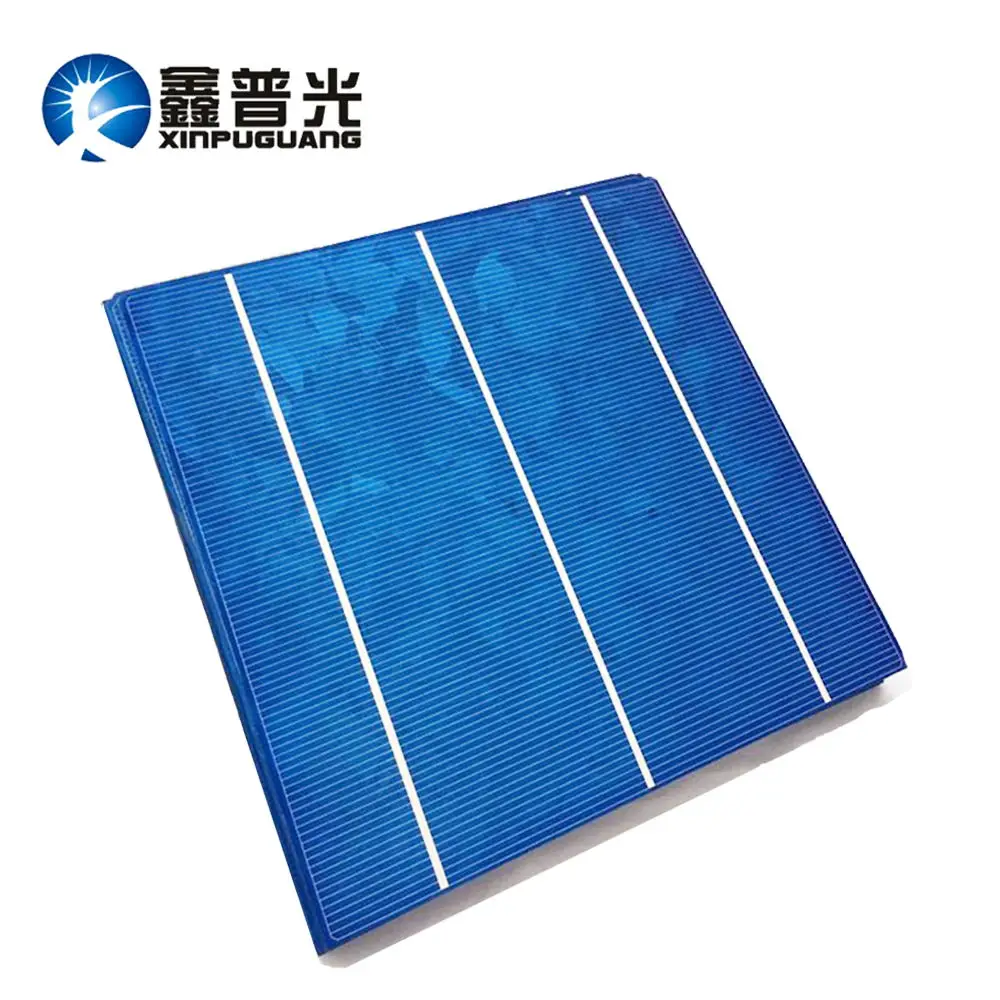

XINPUGUANG 25pcs 156*150MM 4.2W solar cell Polysilicon silicon PV module Photovoltaic 18% efficiency DIY 100W solar panel 0.5v
Packing list
10pcs 156*150mm solar cell
Size 156X150mm
Average thickness (Si)200um±20um
Front contacts (-) 3 silver busbars,distance 52.0mm,2mm wide
Back contacts (+) 3 silver busbars,distance 52.0mm,2.5mm wide
Crystal A Grade Polycrystalline Silicon
Pmmp(W)4.2W
Umpp(V) 0.502V
Impp(A)8.39A
Uoc(V) 0.56V
Isc(A) 8.87A
TkVoltage-0.241%/k
TkCurrent+0.033%/k
TkPower-0.37%/k
Testing Conditions Irradiance: 1000w/m2, temperature:25 cel.degree, AM=1.5
Connection way the blue side connect "-" , white side connect"+".
4. Features 1 Increased efficiency up to 18% and more due to optimal passivation in combination with highly effective back surface field 2 Uniform surface texture offering a superior visual aspect 3 Outstanding stability and reliability thanks to an adapted silicon nitride anti-reflection coating and an optimized metal contacting guaranteeing extended produce lifetime. 4 100% incoming inspection on high quality solar cell.6 Classification into narrow classes according to very strict specifictions 7 Regular international calibration of solar cell.In order to ensure enough power,Youd better to use solder strips or copper strips to connect. Attention: there may be some solar panels have a small spots on the side, please dont worry, its normal and will not affect the function of the solar panels. 、Return Policy
