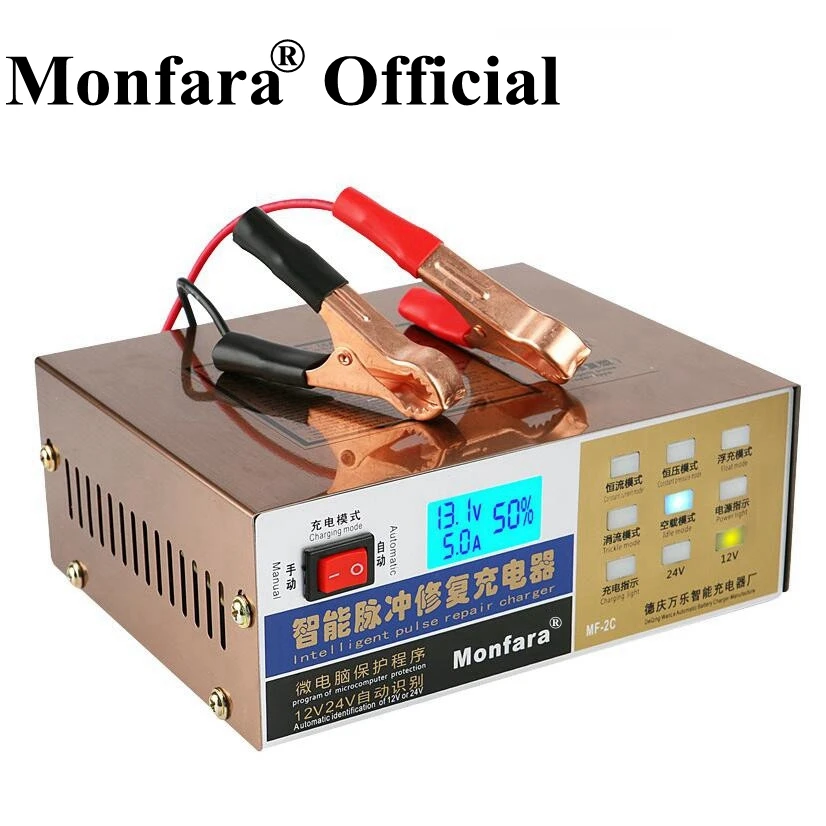

12v/24v Lead Pulse Charger Repair Intelligent Acid Led Best Battery Choice Electronics Car Charleen Valentine Rating: 4.3 out of 5
You may like
Russia panel out of stock now,please choose original.
Before you receive the package please have a check of the item condition,
if broken please refuse it and contact us as soon as possible!
The difference between manual and automatic modeManual: It can be used for small capacity,Low temperature(under 0 ° C) and large Internal resistancethe battery,charging current is bigger than automatic so it take less time than automatic,but there must has human monitoring to avoid damage battery,when the battery shell has temperature must stop charging!using manual mode can’t more than 1 hour!
Automatic:pulg AC power first then connect battery with charger,it will recognize volgate automatic,telligent and convenient.
Highly recommended:in the winter(under 0 ° C),use automatic mode to charge full first then use manual mode for 0.5-1 hours.LED screen: it shows both voltage and current, charging Percentage and differnt charging mode with Chinese.
Identify 6V/12V intelligent,the charging light will bright when charging,when charging full the light will off
Red is anode,black is cathode
Introduction of 5-stage mode
No-load mode: when there has no load connected with charger,the LED Screen will show voltage only,the power is about 2W;
Constant current: means the battery voltage is lower than the set voltage of charger,then the charger supply constant charging current to maintenance both battery and battery charger;
Constant Voltage: advanced pulse width modulation (PWM) technology,control the charger’s current and output voltage accurate,avoid overcharge;
Floating charge mode: when the battery is going to be charged full,the charger will stop charging,but still supply constant floating voltage and small current to battery;
Trickle charge mode: when the battery voltage and current is approaching the set voltage and current,it will turn to trickle floating charge from automatic mode,it means charge full,also can be charged with floating mode.
This item can be used both 110V/220V of input AC power.
The original plug is EU and US plug,we will send you the right pulg if not available for your country!
Parameters
Input Voltage: 110—230V
Output voltage: 12V/24V
Current:10A peak for 12V,8A peak for 24V
Suitable capacity: 20-100AH
Power:160W
Frequency: 50-60HZ
Length of output wire:65cm
Length of input wire:125cm
dimension: 14*19*7cm
Gross weight: 0.9kg
Application: best suitable for 40-120AH lead acid batteries(including wet and dry)
Troubleshooting Processing It shows charged full only a few minutes later even shorter; 1,check the charger if into the self-protection because of overcurrent overheating or Low Voltage,check the cooling fan if work as normal; 2,battery has charged full already or battery has no capacity in it; 3,try to add more Replenisher or Distilled water; 4,check the connection of charger’s connector and battery if well; The battery shell heat when charging or cant charge full after a long time; 1,check the battery if has Short circuit; 2,battery has a Leakage <=0.3A There has a beep or does not work completely in correct operation; 1,check the battery voltage,if the voltage is too low(lower than 10V for 12V) the charger will into self-protection and stop working; 2, shelve for a long time cause broken,or the inner Resistance is too big and has Short circuit; 3,check if there still has beep when connect AC power only. Tips about how maintenance battery In order to maintenance your battery better, Do not charge your battery when the energy is going to run out,lead-acid battery is not memory battery should charge and discharge frequency. If ran out the energy of 12V battery(less than 10V) will do harm to battery,and the charger easy into self-protection because of overcurrent,if happen this,indicate that the battery voltage has lower than 10V,please close the power for 10 minutes and start again.
